How Predator spyware defeats iOS recording indicators

Authors: Hu Ke and Nir Avraham

Executive summary

Since iOS 14, Apple has displayed colored status bar indicators when apps access the camera (green dot) or microphone (orange dot) — a critical privacy feature designed to alert users to potential surveillance. This research documents how Predator spyware, developed by Intellexa/Cytrox, surgically defeats these indicators while conducting covert surveillance.

Through reverse engineering of Predator iOS samples, we reveal previously undocumented technical mechanisms including:

• Objective-C nil messaging exploitation to silently suppress sensor activity updates
• A single hook that defeats both camera AND microphone indicators simultaneously
• An operational gap where VoIP recording lacks built-in stealth capabilities
• The specific iOS private framework APIs targeted by the spyware

Table of contents

1. Background
2. Technical analysis
3. Detection considerations
4. Conclusion
5. Indicators of compromise
6. References

Background

iOS recording indicators

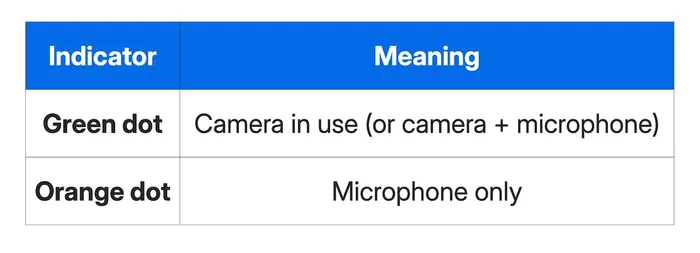

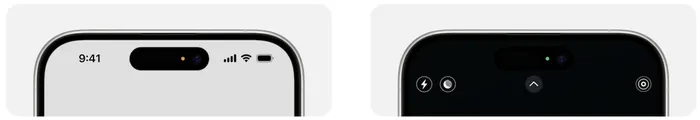

Apple introduced recording indicators in iOS 14 (2020) as a privacy protection mechanism:

These indicators appear in the status bar and cannot be suppressed by legitimate applications. They are managed by SpringBoard, iOS's home screen and UI controller process, through private framework classes that monitor sensor activity.

Prior research: NoReboot

In January 2022, ZecOps (now part of Jamf) published research on "NoReboot" — a technique demonstrating how malware could simulate a device shutdown while maintaining surveillance capabilities. NoReboot worked by:

1. Hijacking the shutdown event
2. Injecting into SpringBoard and BackBoard daemons
3. Blocking SpringBoard from launching (hiding all UI)
4. Suppressing all physical feedback (screen, vibration, touch)

This created the illusion of a powered-off device while the camera and microphone remained active.

Predator's different approach

Predator takes a fundamentally different approach. Rather than simulating device shutdown, it selectively suppresses only the recording indicators while the device remains fully operational. This is more subtle — the user's phone works normally, but they receive no visual warning that surveillance is occurring.

Technical analysis

Component overview

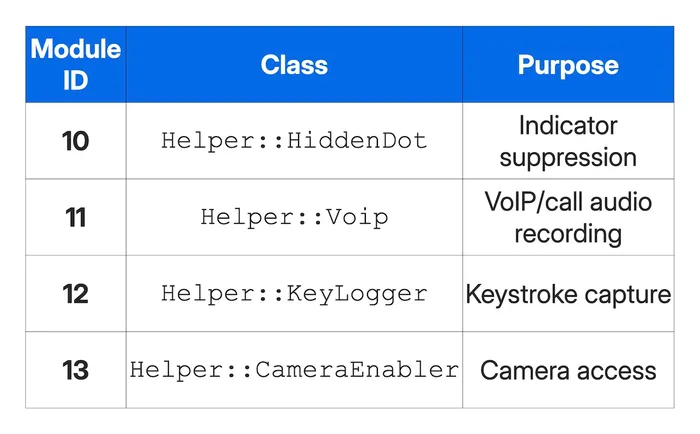

Predator's helper module implements four independent capabilities:

Each module is controlled via a simple command protocol:

• X,A,args — Allocate/Initialize module X
• X,E,args — Execute command on module X
• X,D — Delete/destroy module X

HiddenDot: the indicator suppression mechanism

Hook installation

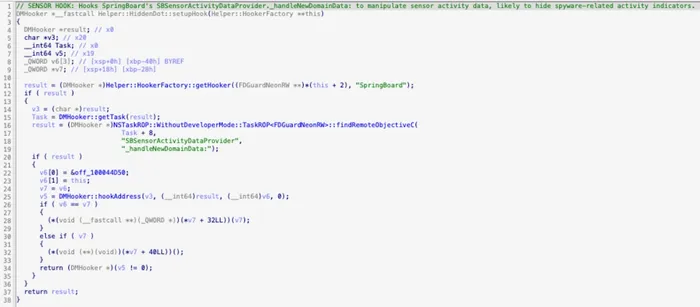

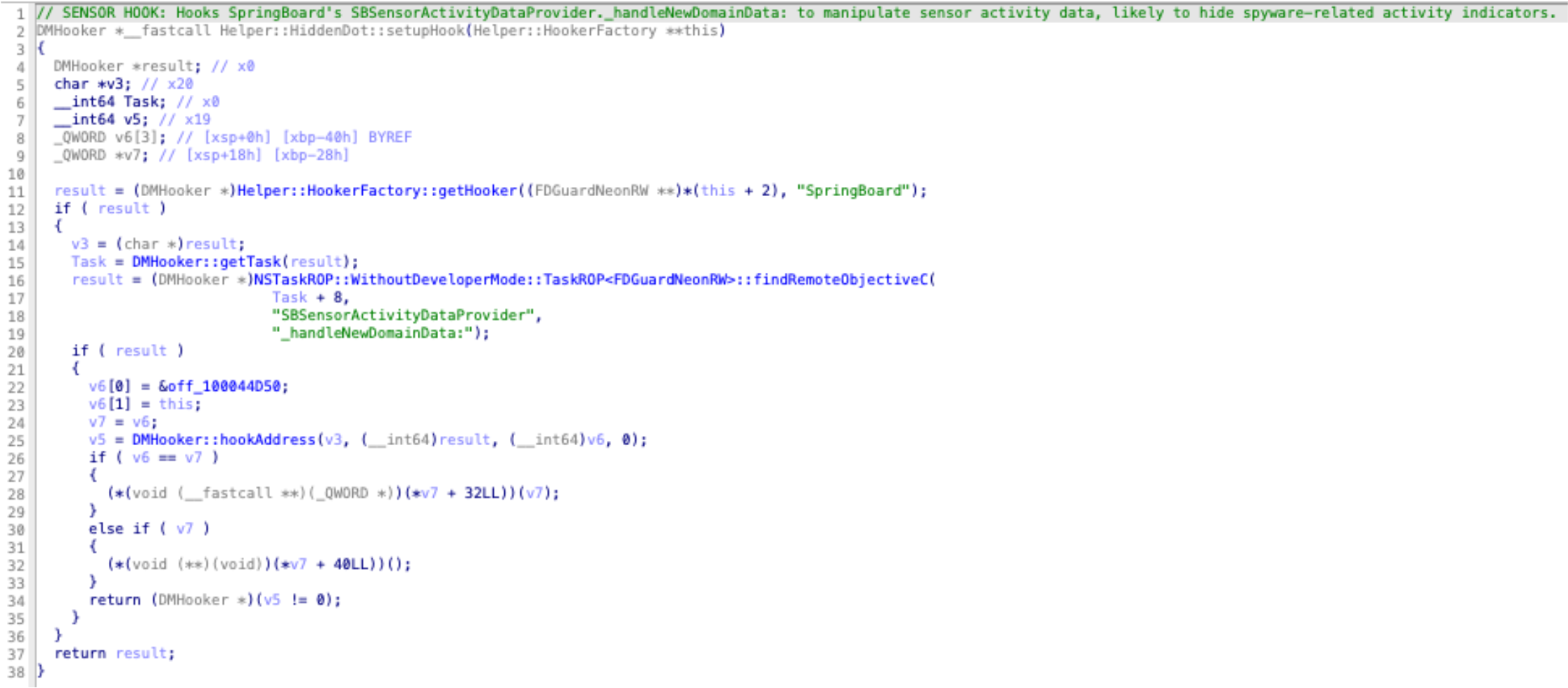

The HiddenDot::setupHook() function targets SpringBoard's sensor activity data provider:

View image

The target method _handleNewDomainData: is called by iOS whenever sensor activity changes — camera turns on, microphone activates, etc. By hooking this single method, Predator intercepts ALL sensor status updates before they reach the indicator display system.

The hook callback: Objective-C nil messaging exploitation

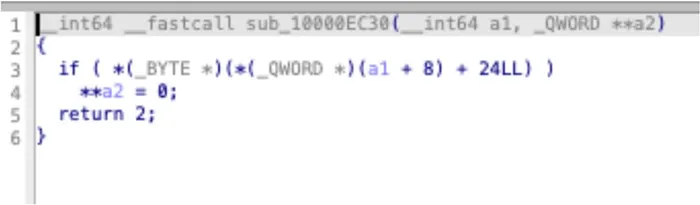

The actual suppression mechanism is elegantly simple. The decompiled callback shows the core logic:

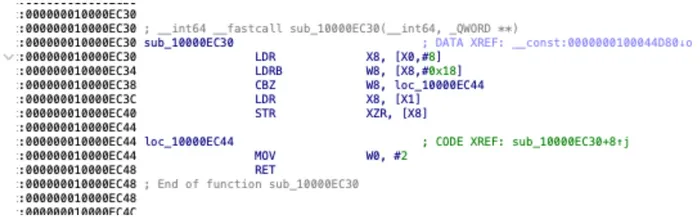

At the assembly level, this translates to a single STR XZR instruction that writes zero to the thread state:

This exploits a fundamental feature of Objective-C: messages sent to nil are silently ignored.

How it works

On ARM64, the calling convention places the self pointer in register x0. When an Objective-C method is called:

[SBSensorActivityDataProvider _handleNewDomainData:newData]

The registers are set up as:

• x0 = self (the SBSensorActivityDataProvider instance)
• x1 = _cmd (the selector)
• x2 = newData (the domain data argument)

By setting x0 to 0 (NULL) before the method executes, the call becomes:

[nil _handleNewDomainData:newData]

In Objective-C, this simply returns nil/0 without executing any code. The sensor activity update is silently dropped — SpringBoard never learns that the camera or microphone became active, and no indicator appears.

Hook return values

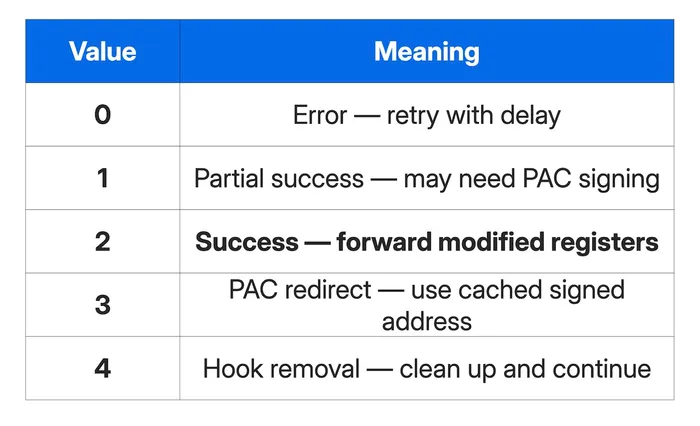

The callback returns 2, which in DMHooker's exception-based hooking system means "continue execution with the modified thread state." The full enum:

Single hook, dual suppression

A critical finding: this single hook suppresses both the green (camera) and orange (microphone) indicators. The SBSensorActivityDataProvider class aggregates all sensor activity before dispatching to the UI layer. By intercepting _handleNewDomainData:, Predator blocks updates for ALL sensor types with one hook.

This is more efficient than the alternative approach we found in dead code (see below), which would require separate hooks for each indicator type.

Dead code: the abandoned approach

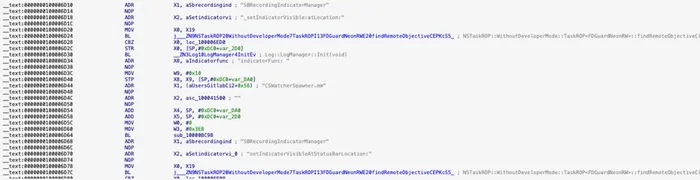

During analysis, we discovered a function CSWatcherSpawner::TestHooker() that implements an alternative indicator suppression mechanism — one that directly hooks SBRecordingIndicatorManager:

View image

This function has zero cross-references — it's never called. It appears to be development/test code that was superseded by the more elegant SBSensorActivityDataProvider approach.

The abandoned approach would have required:

1. Two separate hooks (one per method)
2. Direct manipulation of indicator visibility
3. Potential race conditions with the display system

The production approach via _handleNewDomainData: is cleaner — it stops the data at the source rather than fighting the UI system.

VoIP recording

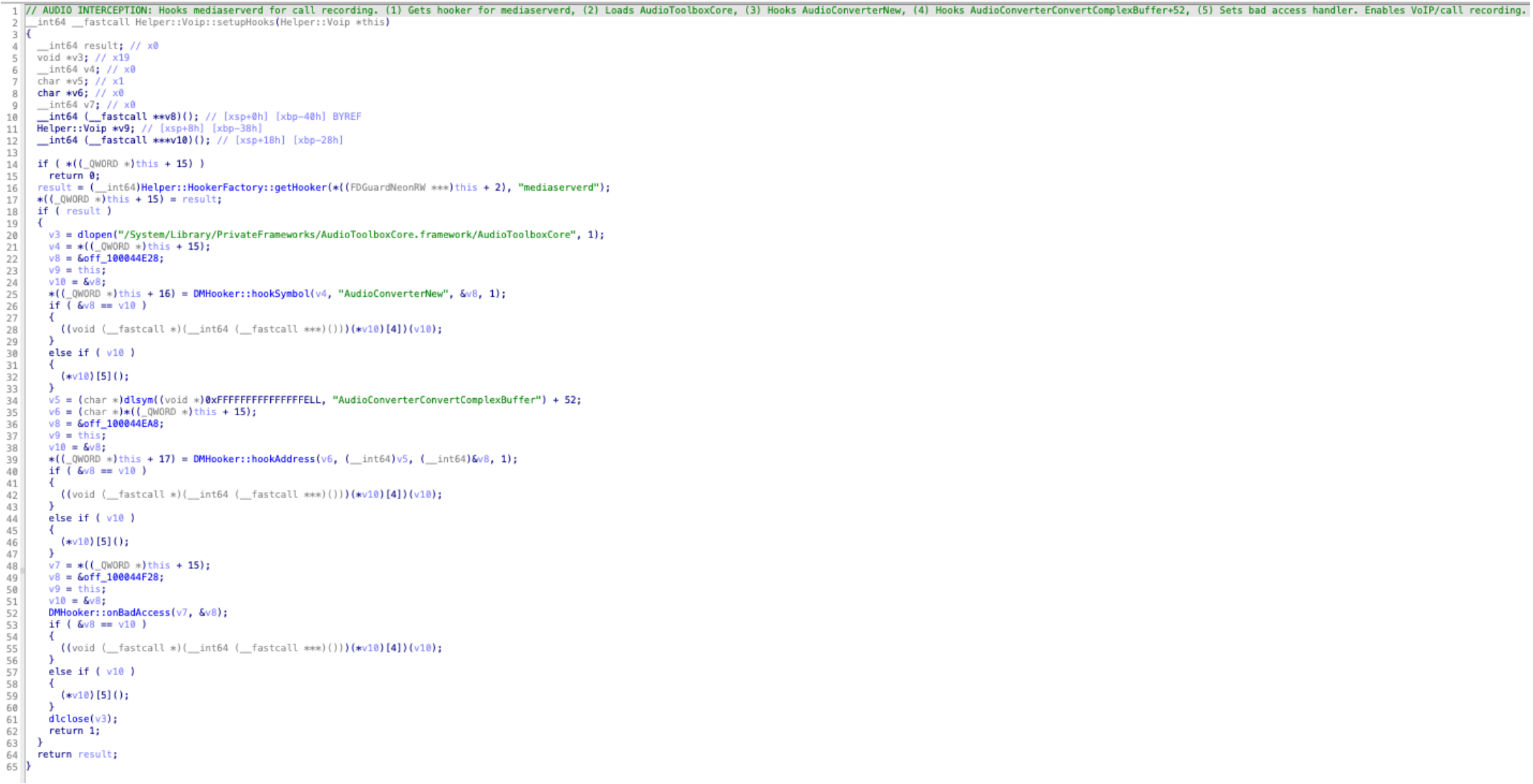

The VoIP recording module has no indicator suppression capability. It only hooks audio processing functions:

View image

The audio capture pipeline extracts VoIP call audio by:

1. Detecting sample rate from buffer sizes (16kHz, 24kHz, 32kHz, 44.1kHz, 48kHz)
2. Converting float32 PCM to int16 using NEON SIMD instructions
3. Downmixing from 4-channel to stereo
4. Writing to file via ExtAudioFileWrite()

But there is no code to suppress the orange microphone indicator. The design implies one-time universal suppression, after which VoIP recording (and potentially camera capture) can run without triggering visible indicators.

CameraEnabler: PAC bypass for camera access

The CameraEnabler module uses a different technique — PAC (Pointer Authentication Code) redirection:

Target discovery via pattern matching

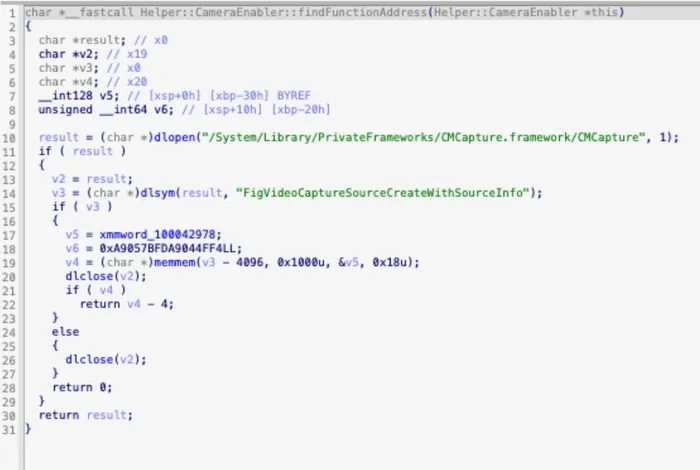

Rather than hooking a known symbol, CameraEnabler locates its target function through ARM64 instruction pattern matching:

This technique allows Predator to find internal functions that aren't exported symbols, making the hook more resilient to iOS updates that might rename or reorganize exports.

Hook callback: conditional PAC redirect

The CameraEnabler callback checks the x0 register value and conditionally redirects execution:

Return value 3 instructs DMHooker to redirect execution using a pre-signed return address from its PAC cache, effectively bypassing the camera access check.

Detection considerations

Process injection artifacts

Predator's hooks require code injection into system processes:

• SpringBoard (for HiddenDot)
• mediaserverd (for CameraEnabler and VoIP)

Detection approaches:

• Monitor for unexpected memory mappings in system processes
• Check for exception port registration by non-system code
• Analyze thread states for breakpoint instructions at unexpected locations

Hook detection

The DMHooker framework uses Mach exception-based hooking rather than traditional inline hooks. Detection requires:

• Enumerating exception ports for system processes
• Checking for EXC_BREAKPOINT handlers pointing to non-system code
• Monitoring for thread_set_state calls that modify register contents

Behavioral indicators

• Camera or microphone usage without corresponding indicator
• ExtAudioFileWrite calls from mediaserverd to unusual paths
• SpringBoard receiving sensor activity notifications but not updating UI

Conclusion

This research documents the first public technical analysis of Predator's iOS recording indicator bypass mechanisms. Key findings include:

1. Objective-C nil messaging exploitation: A single hook on SBSensorActivityDataProvider._handleNewDomainData: defeats both camera and microphone indicators by setting the self pointer to NULL.
2. Modular architecture without automatic stealth: The VoIP recording module lacks built-in indicator suppression, requiring operators to manually activate HiddenDot first.
3. ARM64 pattern matching for target discovery: CameraEnabler locates internal framework functions through instruction pattern matching rather than symbol resolution.
4. Dead code reveals development history: Abandoned SBRecordingIndicatorManager hooks show the evolution from direct UI manipulation to the cleaner data-source interception approach.

These findings fill gaps in existing threat intelligence and demonstrate the sophisticated techniques employed by commercial spyware to evade iOS privacy protections.

Indicators of compromise

Hooked methods

• SBSensorActivityDataProvider._handleNewDomainData: (SpringBoard)
• Function at pattern offset in CMCapture.framework (mediaserverd)
• AudioConverterNew (mediaserverd)
• AudioConverterConvertComplexBuffer+52 (mediaserverd)

Target processes

• SpringBoard
• mediaserverd

Framework paths

• /System/Library/PrivateFrameworks/CMCapture.framework/CMCapture
• /System/Library/PrivateFrameworks/AudioToolboxCore.framework/AudioToolboxCore

References

1. Jamf Threat Labs, "NoReboot: Faking an iPhone Restart," January 2022
2. Jamf Threat Labs, "Predator's kill switch: undocumented anti-analysis techniques in iOS spyware", January 2026
3. Google Threat Analysis Group, "Buying Spying: Insights into Commercial Surveillance Vendors," February 2024
4. Apple Developer Documentation, " About App Privacy Report " December 2025
5. Google Threat Intelligence Group “Sanctioned but Still Spying: Intellexa’s Prolific Zero-Day Exploits Continue”, December 2025
